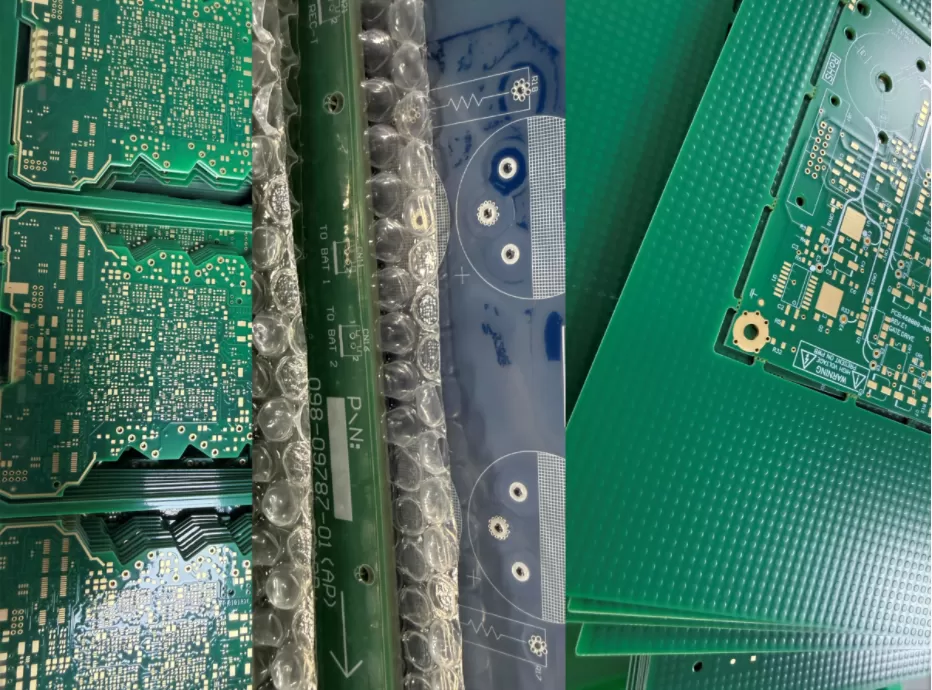

中文Prototype and Low-Volume Bare PCB Manufacturing
JetH Pro PCB Fab builds the bare PCB you need to validate now—and keeps the approved construction ready for the next build.
JetH Pro PCB Fab routes each order by PCB construction and validation risk—not by piece count alone.

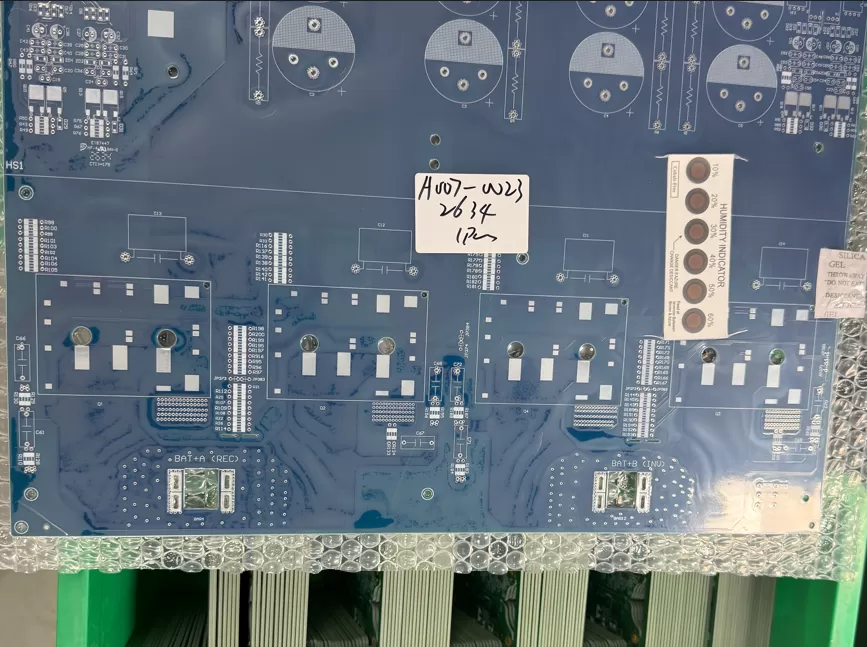

PCB Prototype Engineering Review Before Fabrication
A fast prototype is useful only when the manufactured board still represents the intended design.
Production timing is confirmed after the files are complete, technical questions are closed and the order is released.
Custom stack-up or special construction? Send the actual build data for review.

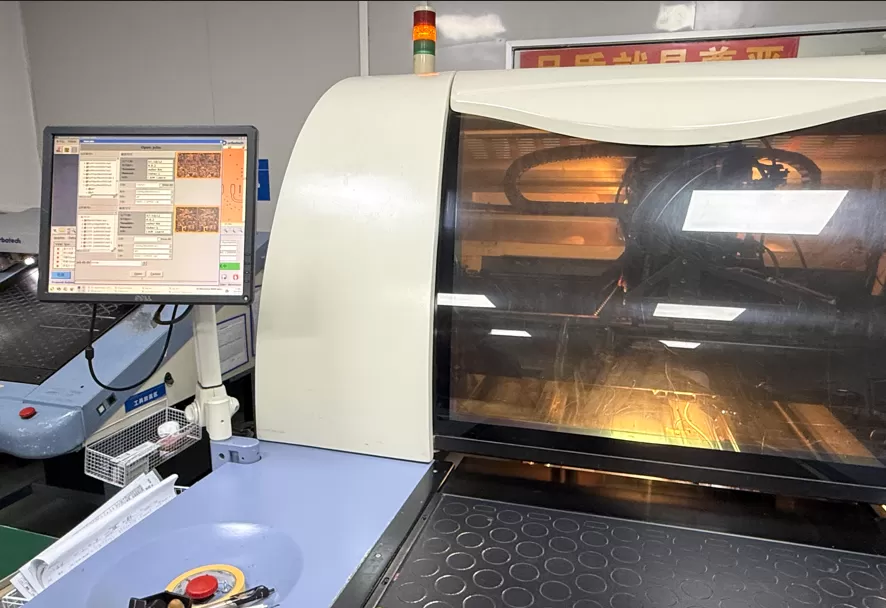

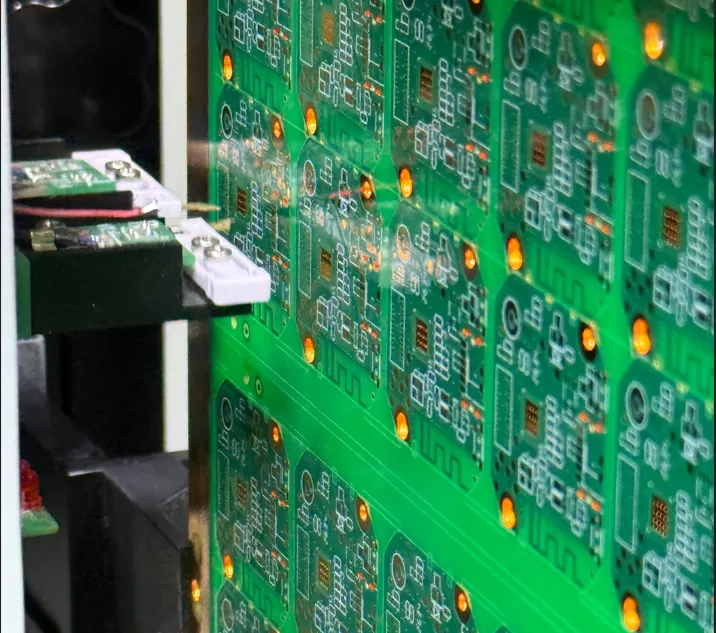

Prototype PCB Inspection and Quality Verification
“Quality PCB” is not an acceptance method. The inspection route must match the board and the released requirement.
Which tests and reports must be specified before quotation? +

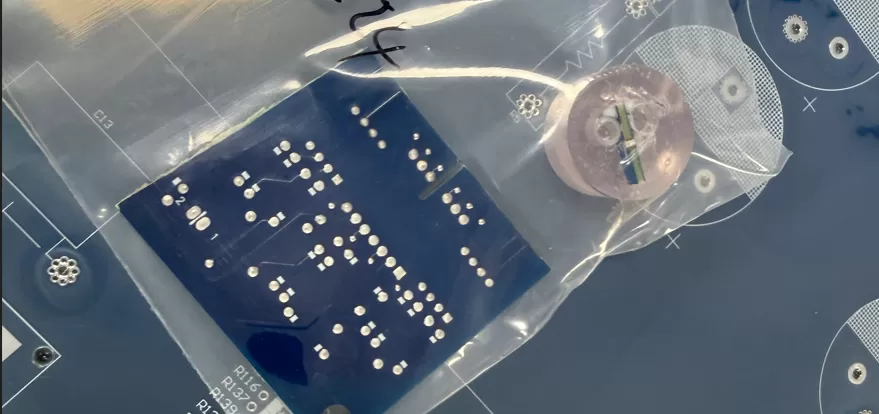

Identify required impedance reports, microsections, hole-copper measurements, material certificates, CoC, first-article reports, solderability testing or ionic contamination testing before the order is released.
Bare PCB Capabilities for Prototype and Low-Volume Production
Final feasibility is confirmed from the complete construction. Maximum limits may not be combinable.
JetH Pro PCB Fab carries the approved requirements forward instead of treating the next order as an unrelated build.
Additional materials, surface finishes and manufacturing options +
Materials: FR-4, high-Tg FR-4, Rogers, Taconic, Arlon, Nelco, PTFE and hybrid constructions.
Finishes: ENIG, HASL, OSP, ENEPIG, hard gold, soft gold, immersion silver and immersion tin.
Impedance: ±10% with applicable coupons, TDR testing and reports.
Select the PCB Information Relevant to Your Project
› Materials & Stack-Ups
Standard and custom constructions, specified laminate grades and material substitution restrictions.
› Surface Finishes
State the required finish, gold thickness and connector condition when they affect function or acceptance.
› Testing & Documentation
Specify impedance reports, microsections, certificates, FAI records and other required deliverables.
› Files for Quotation
Gerber or ODB++, NC drill, dimensions, layers, quantity, thickness, copper, material, finish and delivery date.
This page covers the prototype and low-volume workflow. Detailed construction rules remain on the relevant PCB technology pages.
Share the fabrication data, quantity, required date and validation target. JetH Pro PCB Fab will review the construction before quotation or production release.
